Mutabank

Engineered for the tropics.

Inverter air conditioning, hybrid solar inverters and battery storage, supplied, installed and serviced across Jamaica by Something Cool.

Browse the range

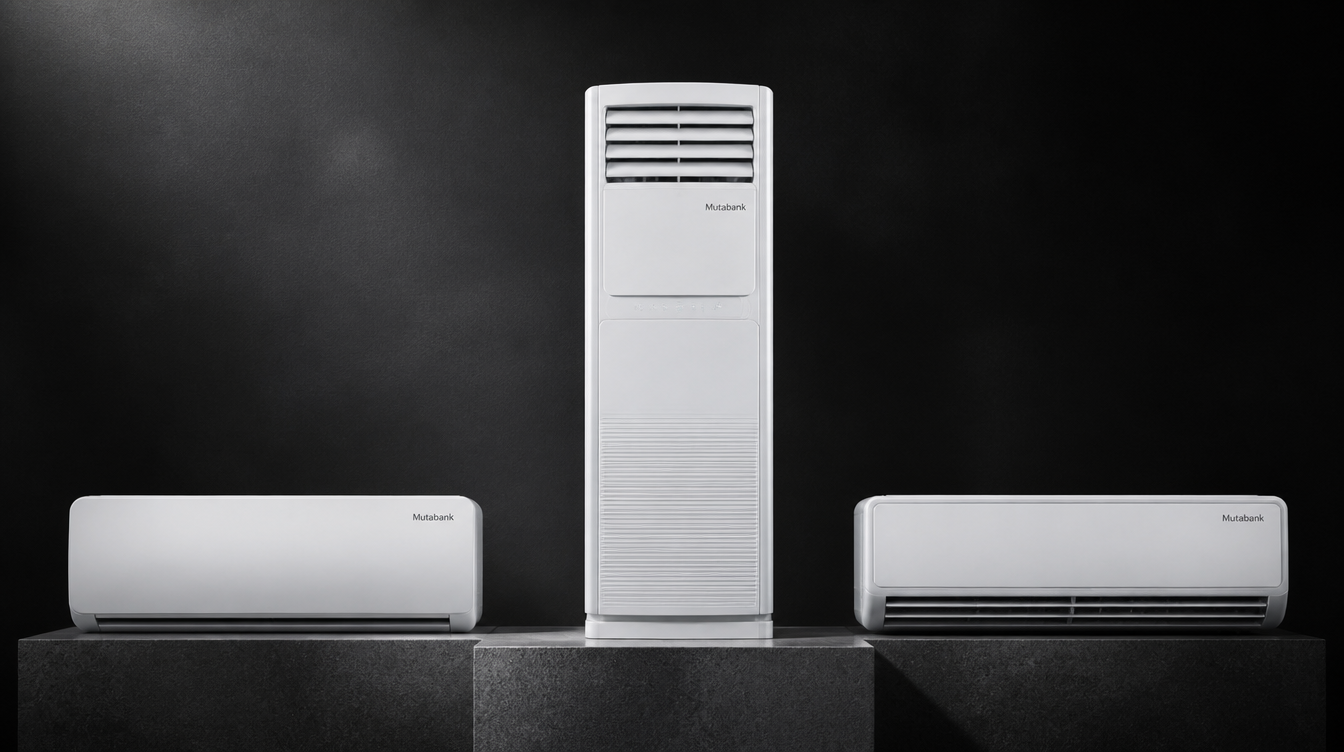

Two Mutabank wall-mount units either side of a Mutabank floor-standing column

The range

Cooling

Air conditioners from a range built for high heat: wall-mounted units from 7,000 to 36,000 BTU and floor-standing units up to 48,000 BTU.

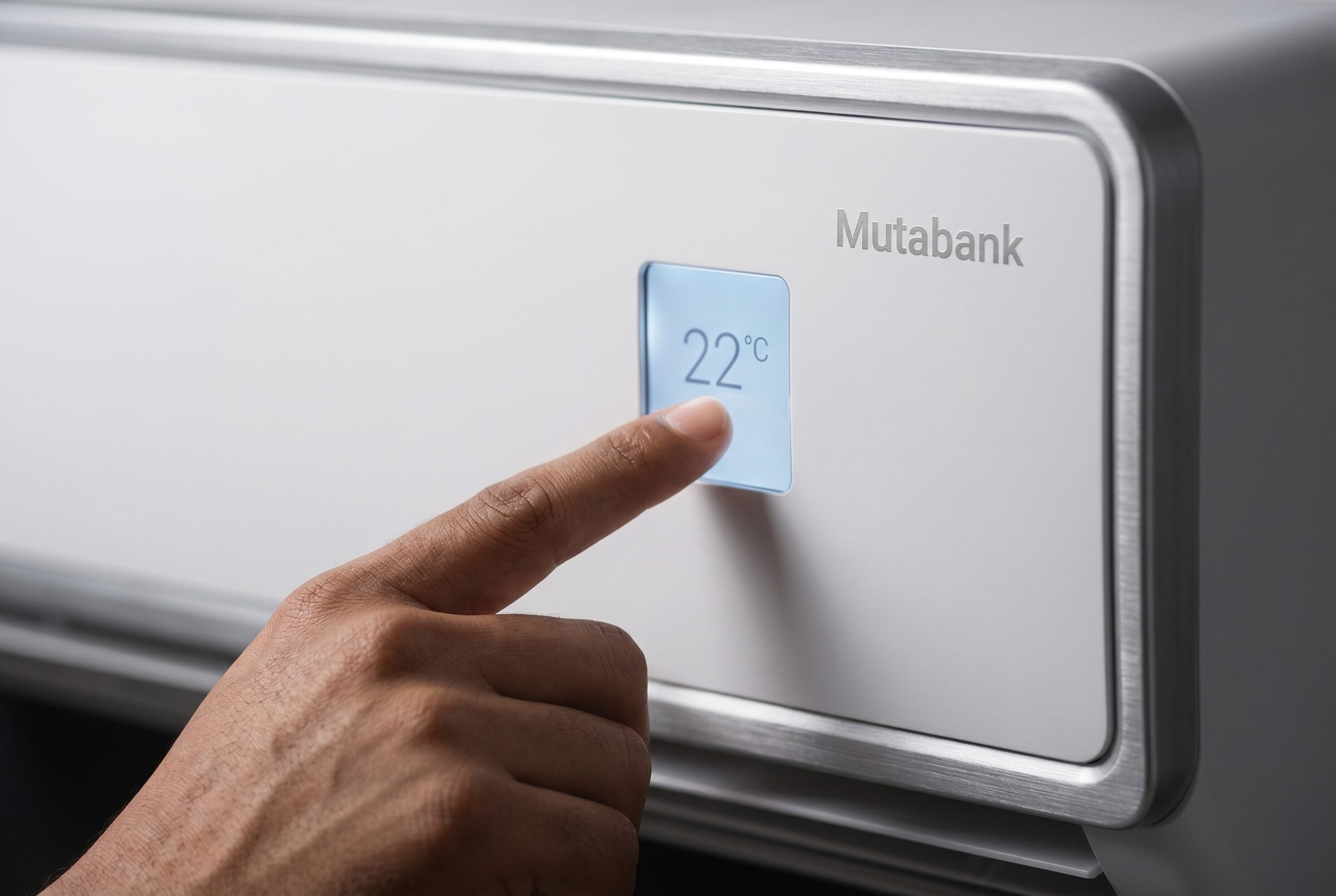

A finger setting the temperature on the touch panel of a Mutabank wall-mount
  • Keeps cooling at 60°CNo drop in capacity at 50°C outdoors and still running at 60°C: an air-cooled box keeps the outdoor electronics cool.
  • GEN mode for brownoutsCaps the draw at about 30, 50 or 70% of rated power, for an unstable supply or a generator.
  • 18°C air in 30 secondsTurbo start takes the air leaving the unit from 27°C to 18°C in half a minute.
  • AI inverter controlReaches your setting sooner, then idles at ultra-low frequency: 10–20% more efficient than an ordinary inverter unit.
  • Restarts after a power cutKeeps the temperature and settings, and picks up where it left off when the power returns.
  • Rust-proof outdoor unitCorrosion-resistant casing, sealed against water, insects and dust.
Cooling in extreme heatCapacity of a 9,000 BTU outdoor unit, manufacturer test

50°C outdoors

Mutabank9,420 BTU/h
Ordinary inverter AC6,140 BTU/h

60°C outdoors

Mutabank5,120 BTU/h
Ordinary inverter ACShuts down

The line-up

Capacities in thousands of BTU. Not every size is kept in stock.

Mutabank air conditioner series and the capacities each comes in
Series7K9K12K18K24K30K36K42K48K
Wall-mountedLE series, inverterAvailableAvailableAvailableAvailableAvailableAvailable
Wall-mountedL-Pro series, inverterAvailableAvailableAvailableAvailableAvailableAvailableAvailable
Floor-standingLC and LY series, inverterAvailableAvailable
Floor-standingLD and LH seriesAvailableAvailableAvailable

Shop cooling

Hybrid inverters

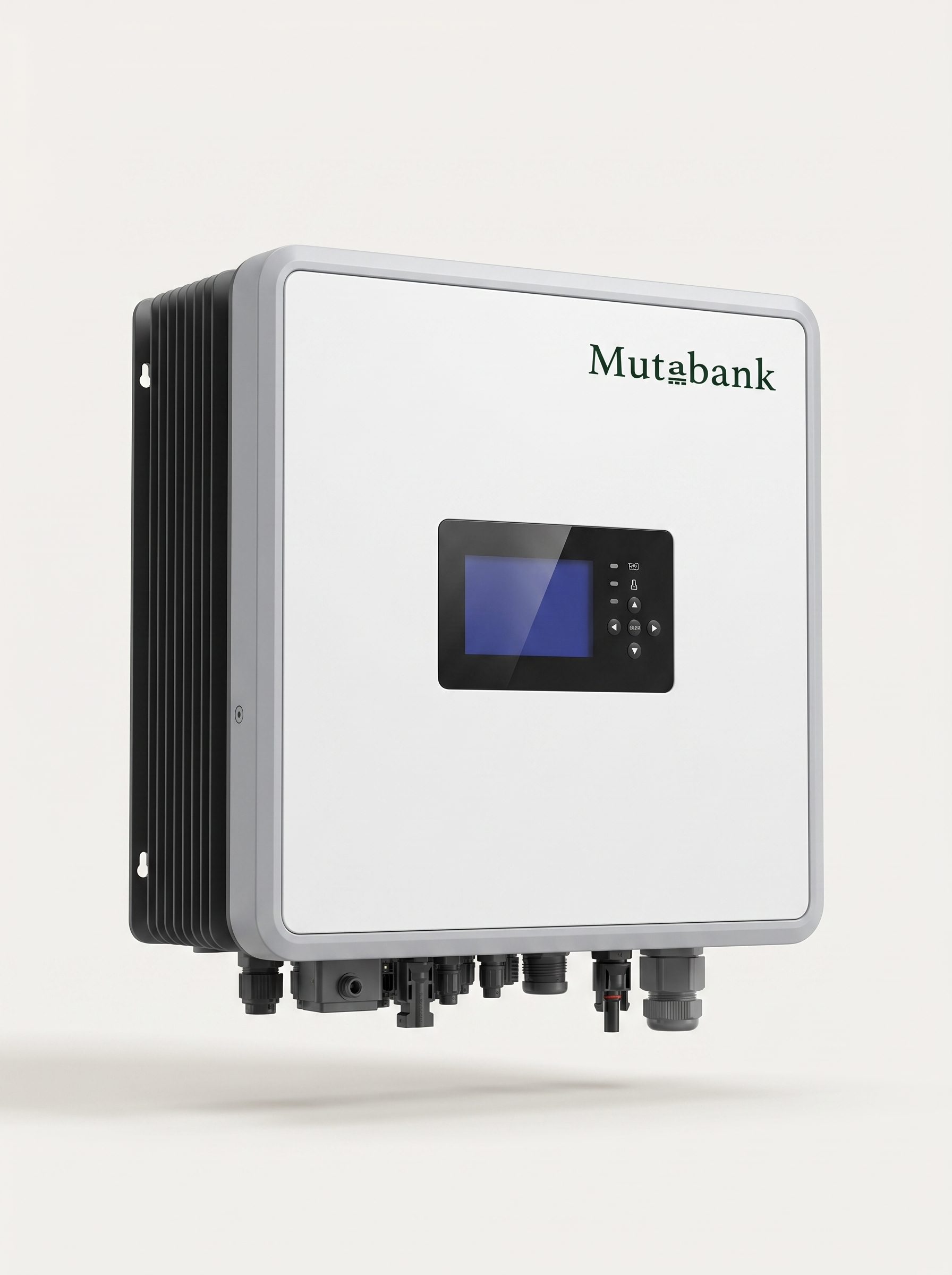

A 10 kW all-in-one inverter that runs the house from solar, batteries and the grid, and sits at the top of the battery stack.

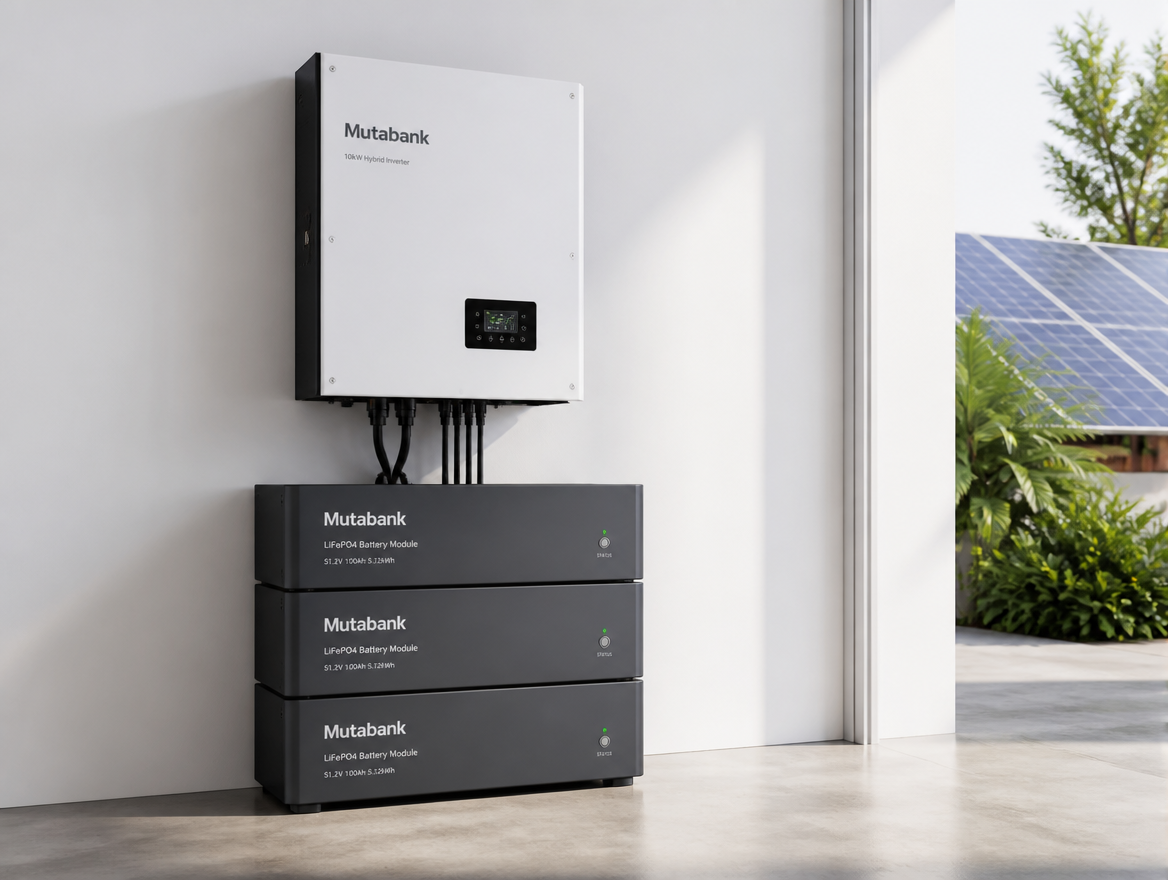

A Mutabank hybrid inverter on the wall above a Mutabank battery stack
  • You set the priorityProgramme it to draw on the batteries or the grid first.
  • Full output off-gridDelivers 100% of its rating with no grid connection.
  • Watch it from your phoneReal-time monitoring and control through the app and website.

10 kW all-in-one inverter

From the manufacturer's specification sheet

Rated output
10,000 VA / 10,000 W
Output
Pure sine wave, 230 Vac
Solar input
2 MPPT trackers, up to 5,000 W each
Solar voltage
80–500 Vdc operating, 500 Vdc max
Battery charging
Up to 150 A from solar and grid combined
Switchover
10 ms typical
Efficiency
Over 93% on battery, over 95% on grid
Frequency
50 / 60 Hz, detected automatically
Operating temperature
0–55°C, output reduced above 45°C
Monitoring
USB, RS485, Wi-Fi (optional)

Shop hybrid inverters

Battery storage

Stackable lithium iron phosphate battery modules for the 10 kW all-in-one system, from 20 kWh to 50 kWh in one stack.

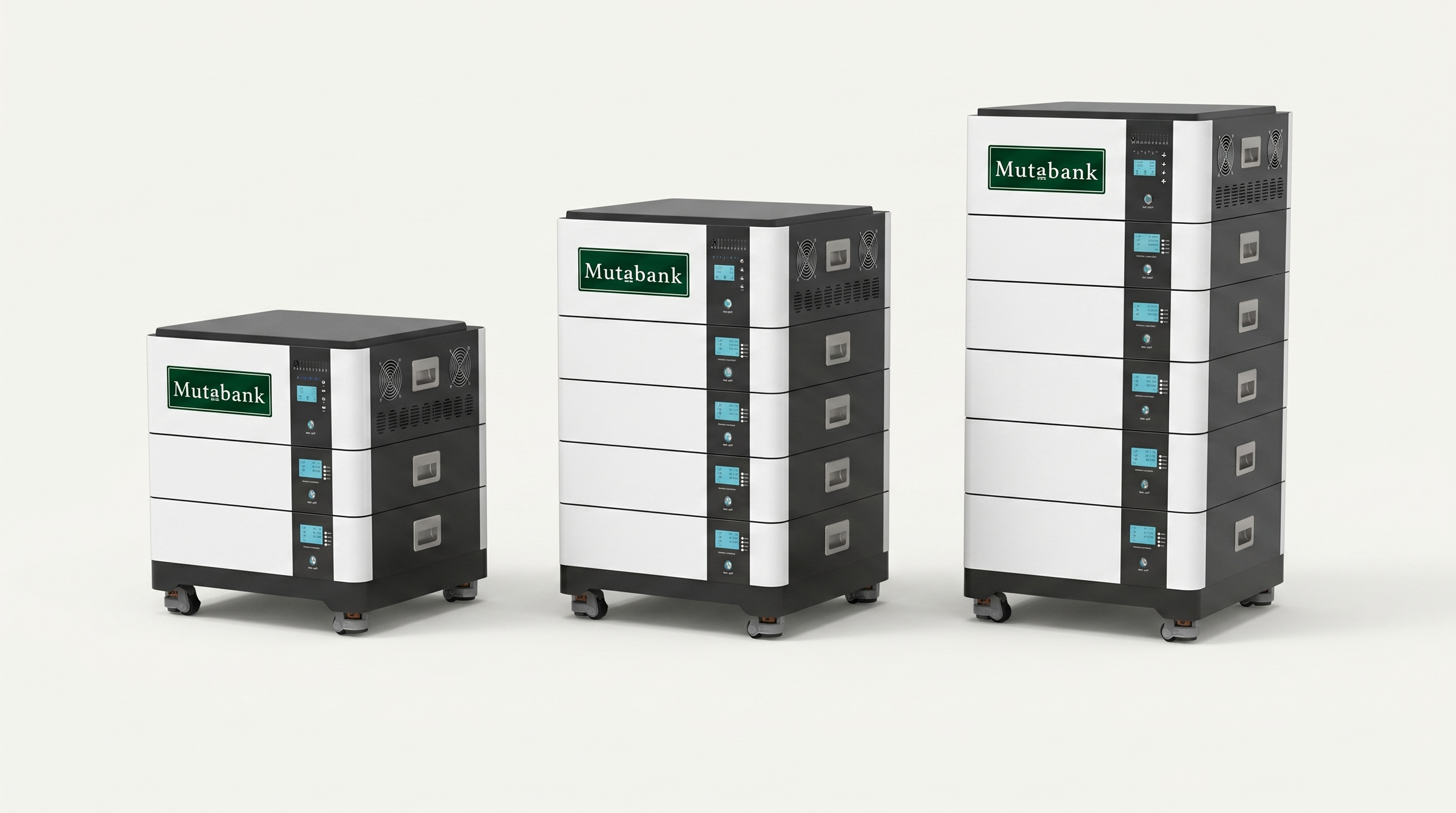

Three Mutabank battery stacks of increasing height
  • 20 to 50 kWhStack two to five modules under the inverter, and add more as your loads grow.
  • Two module sizes51.2 V LiFePO4 modules of 10.24 kWh or 15.36 kWh.
  • All-in-one designInverter and batteries in one stack on a wheeled base.

Battery modules

From the manufacturer's specification sheet

Mutabank battery module specifications
ModuleVoltageCapacityEnergy
10 kWh module51.2 V200 Ah10.24 kWh
15 kWh module51.2 V300 Ah15.36 kWh
Chemistry
LiFePO4 (lithium iron phosphate)
Charge current
40 A recommended, 100 A max
Discharge current
100 A recommended, 200 A max
Humidity
5–95%, conformal-coated electronics

Stack sizes with the 10 kW inverter

Size is width × depth × height

Mutabank battery stack configurations
StorageModulesSizeWeight
20 kWh2 × 10 kWh690 × 590 × 565 mm≈212 kg
30 kWh3 × 10 kWh, or 2 × 15 kWh690 × 590 × 710 / 761 mm≈297.5 / 277 kg
40 kWh4 × 10 kWh690 × 590 × 855 mm≈383 kg
45 kWh3 × 15 kWh690 × 590 × 1004 mm≈395 kg
50 kWh5 × 10 kWh690 × 590 × 1000 mm≈468.5 kg

Shop battery storage

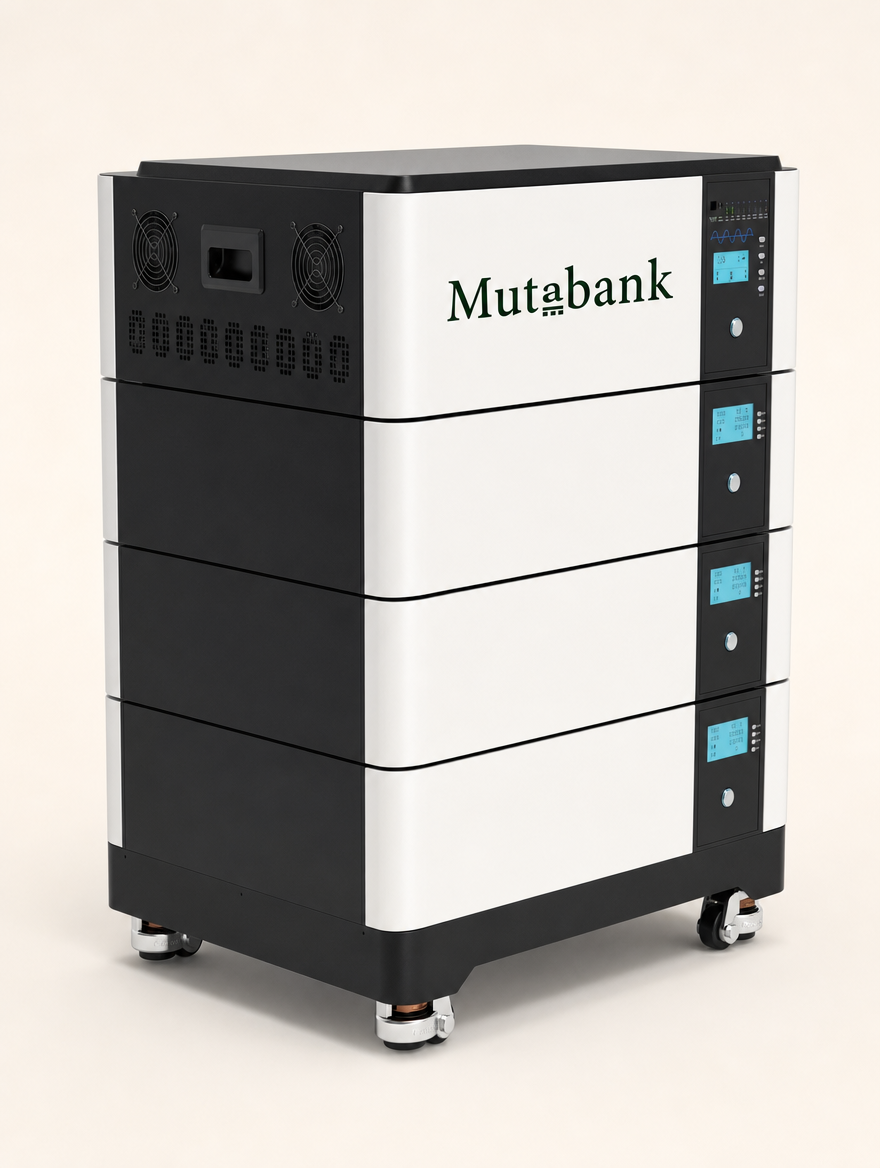

MBK-52V-300AH

Mutabank 12kW Battery

Rating
12 kW
Nominal voltage
52 V
Capacity
300 Ah
Chemistry
LiFePO4
Type
Solar Batteries
Warranty
5-year battery warranty

J$365,000.00

In stock

Full details

Features and figures are from the manufacturers' 2024 catalogue and specification sheets; features vary by model and may change. Prices in Jamaican dollars, including GCT. Delivery and installation are quoted separately.

Ready to spec a Mutabank for your space?

We size, supply, install and stand behind it. Walk in at our Old Harbour shop or book a site visit.
